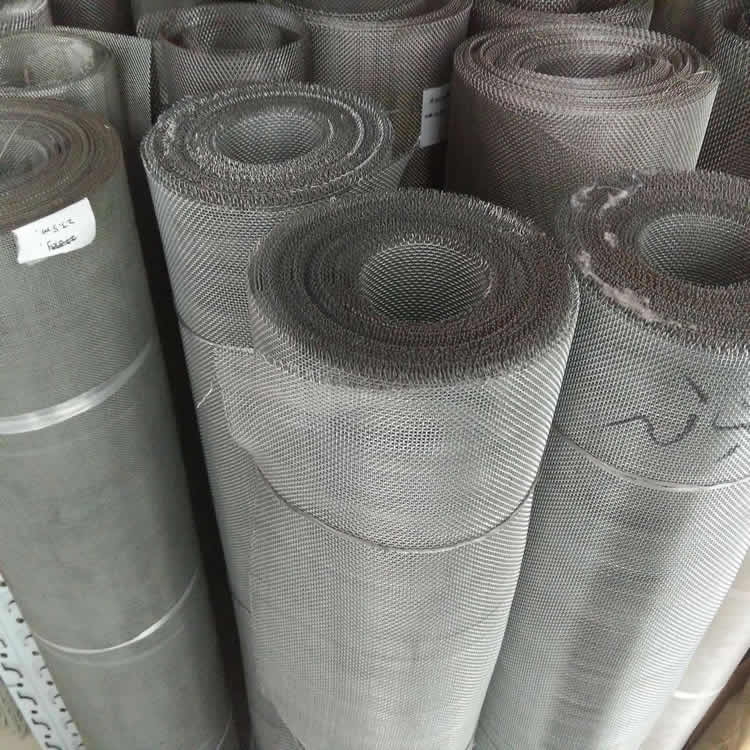

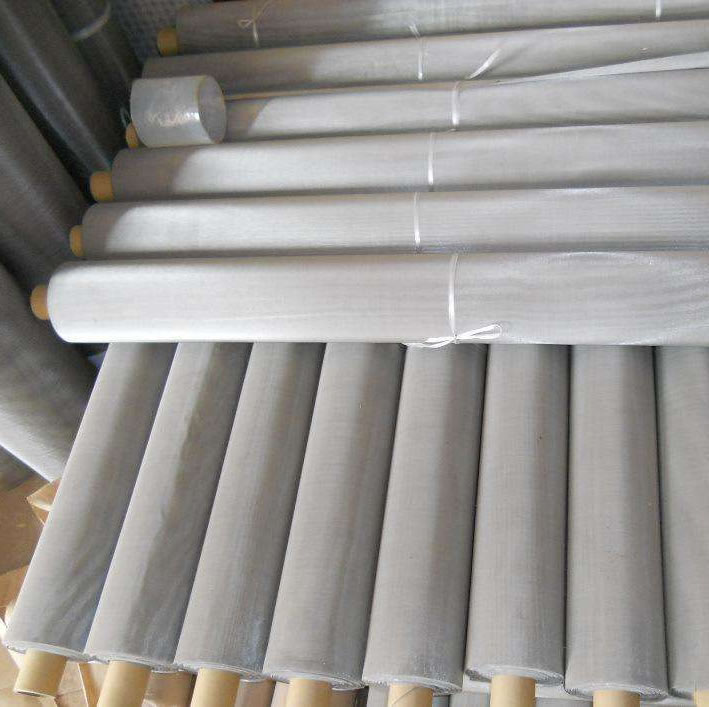

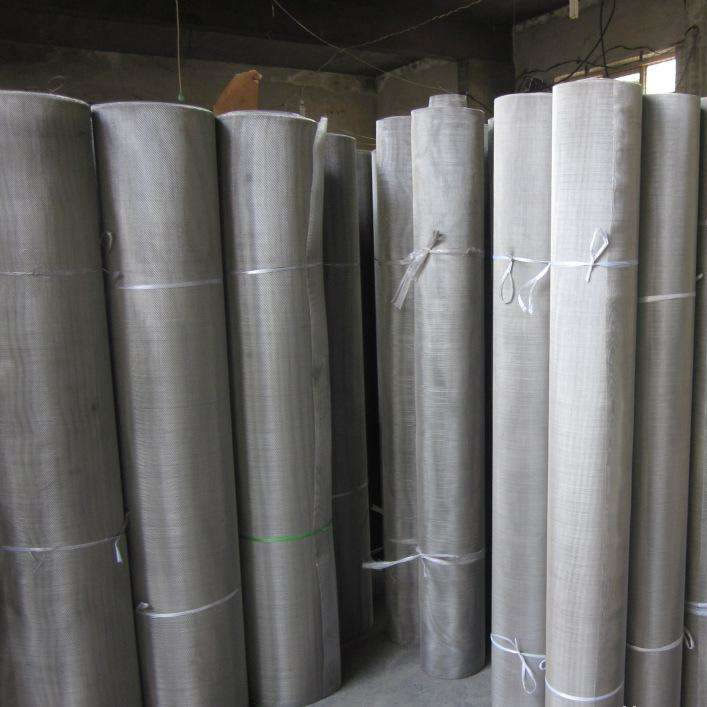

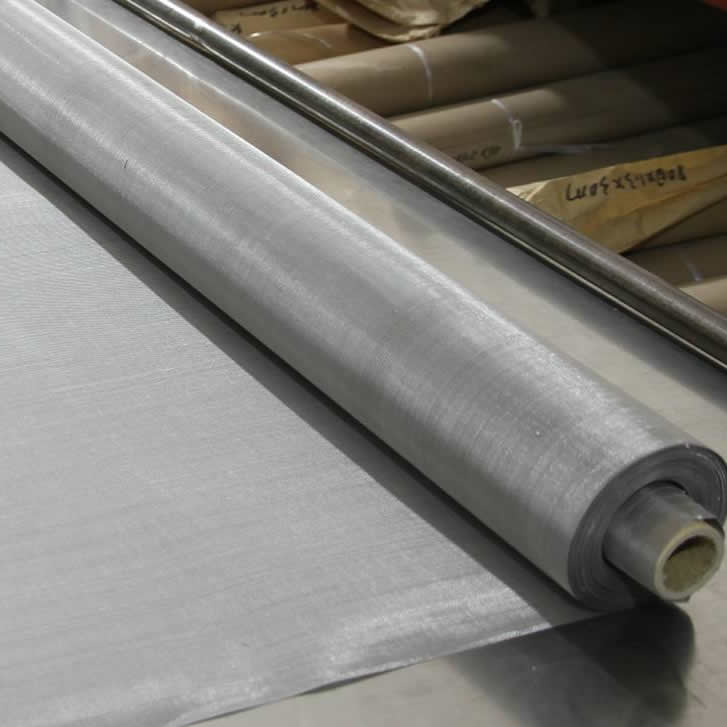

Stainless Steel Wire Mesh

MOQ:	10,000 PCS
Sample:	Workable
Delivery Time:	10 days after deposit
Loading Port:	Xingang,China
Payment terms:	T/T or LC

Product Description

Material for Stainless Steel Wire Mesh and Woven Wire Cloth : 304 304L 316 316L

Weaving patterns involved: plain weave and twill weave.

Property of Stainless Steel Woven Wire Mesh and Wire Cloth: Acid resisting, alkali resisting, heat resisting, durable

Stainless Steel Woven Wire Mesh and Wire Cloth Application: Sifting and filtering in acid and alkali conditions. Slurry net in petroleum, sifting and screening mesh in chemical and chemical fiber industry, acid washing mesh in electric plating industry.
Roll Width: 36", 40", 48", 60"
Roll Length: 25Ft, 50Ft and 100Ft

Stainless Steel Wire Mesh Standard Grade made from plain weave or twill weave, materials are available in ANSI304 ANSI316 also other stainless steel 300 series and 400 series.

Specification list of Stainless Steel Wire Mesh / Woven Wire Cloth
Meshes Per Linear Inch	Diameter of Wire		Width of Opening		Open Area, %
Meshes Per Linear Inch	Inches	mm	Inches	mm	Open Area, %
1	0.135	3.5	0.865	21.97	74.8
1	0.120	3.0	0.880	22.35	77.4
1	0.105	2.5	0.895	22.73	80.1
1	0.080	2.0	0.920	23.36	84.6
3/4"	0.120	3.0	0.630	16.00	70.5
3/4"	0.080	2.0	0.670	17.01	79.8
2 x 2	0.120	3.0	0.380	9.65	57.8
2 x 2	0.105	2.5	0.395	10.03	62.4
2 x 2	0.080	2.0	0.420	10.66	70.6
2 x 2	0.063	1.6	0.437	11.10	76.4
2 x 2	0.047	1.2	0.453	11.50	82.1
3 x 3	0.080	2.0	0.253	6.42	57.6
3 x 3	0.063	1.6	0.270	6.85	65.6
3 x 3	0.047	1.2	0.286	7.26	73.6
4 x 4	0.080	2.0	0.170	4.31	46.2
4 x 4	0.063	1.6	0.187	4.75	56.0
4 x 4	0.047	1.2	0.203	5.15	65.9
5 x 5	0.047	1.2	0.153	3.88	58.5
5 x 5	0.041	1.0	0.159	4.01	63.2
6 x 6	0.063	1.6	0.104	2.64	38.9
6 x 6	0.047	1.2	0.120	3.04	51.8
6 x 6	0.035	0.9	0.132	3.35	62.7
8 x 8	0.063	1.6	0.062	1.57	24.6
8 x 8	0.047	1.2	0.078	1.98	38.9
8 x 8	0.035	0.9	0.090	2.28	51.8
8 x 8	0.032	0.8	0.093	2.36	55.4
8 x 8	0.028	0.7	0.097	2.46	60.2
10 x 10	0.047	1.2	0.053	1.34	28.1
10 x 10	0.035	0.9	0.065	1.65	42.3
10 x 10	0.032	0.8	0.068	1.27	46.2
10 x 10	0.025	0.63	0.075	1.90	56.3
12 x 12	0.041	1.0	0.042	1.06	25.4
12 x 12	0.035	0.9	0.048	1.22	33.2
12 x 12	0.032	0.8	0.051	1.29	37.5
12 x 12	0.028	0.7	0.055	1.39	43.6
12 x 12	0.023	0.58	0.060	1.52	51.8
14 x 14	0.032	0.8	0.039	1.52	29.8
14 x 14	0.025	0.63	0.046	0.99	41.5
14 x 14	0.023	0.58	0.048	1.22	45.2
14 x 14	0.020	0.5	0.051	1.30	51.0
16 x 16	0.028	0.7	0.035	0.89	30.5
16 x 16	0.023	0.58	0.040	1.01	39.9
16 x 16	0.018	0.45	0.045	1.14	50.7
18 x 18	0.020	0.5	0.036	0.91	41.1
18 x 18	0.018	0.45	0.038	0.96	48.3
20 x 20	0.023	0.58	0.027	0.68	29.2
20 x 20	0.020	0.5	0.030	0.76	36.0
20 x 20	0.018	0.45	0.032	0.81	41.0
20 x 20	0.016	0.40	0.034	0.86	46.2
24 x 24	0.014	0.35	0.028	0.71	44.2
28 x 28	0.010	0.25	0.026	0.66	51.8
30 x 30	0.013	0.33	0.020	0.50	37.1
30 x 30	0.012	0.30	0.021	0.53	40.8
35 x 35	0.012	0.30	0.017'	0.43	33.8
35 x 35	0.010	0.25	0.019	0.48	42.4
40 x 40	0.014	0.35	0.011	0.28	19.3
40 x 40	0.012	0.30	0.013	0.33	27.4
40 x 40	0.010	0.25	0.015	0.38	36.0
40 x 40	0.0095	0.24	0.016	0.40	38.4
50 x 50	0.009	0.23	0.011	0.28	30.3
60 x 60	0.0075	0.19	0.009	0.22	30.5
70 x 70	0.0065	0.17	0.008	0.20	29.8
80 x 80	0.0070	0.18	0.006	0.15	19.4
80 x 80	0.0055	0.14	0.007	0.17	31.4
90 x 90	0.0055	0.14	0.006	0.15	25.4
100 x 100	0.0045	0.11	0.006	0.15	30.3
120 x 120	0.0040	0.10	0.0043	0.11	26.6
120 x 120	0.0037	0.09	0.005	0.12	30.7
150 x 150	0.0026	0.066	0.0041	0.10	37.4
165 x 165	0.0019	0.048	0.0041	0.10	44.0
180 x 180	0.0023	0.058	0.0032	0.08	33.5
180 x 180	0.0020	0.050	0.0035	0.09	41.1
200 x 200	0.0020	0.050	0.003	0.076	36.0
200 x 200	0.0016	0.040	0.0035	0.089	46.0
220 x 220	0.0019	0.048	0.0026	0.066	33.0
230 x 230	0.0014	0.035	0.0028	0.071	46.0
250 x 250	0.0016	0.040	0.0024	0.061	36.0
270 x 270	0.0014	0.040	0.0022	0.055	38.0
300 x 300	0.0012	0.030	0.0021	0.053	40.1
325 x 325	0.0014	0.040	0.0017	0.043	30.0
325 x 325	0.0011	0.028	0.0020	0.050	42.0
400 x 400	0.0010	0.025	0.0015	0.038	36.0
500 x 500	0.0010	0.025	0.0011	0.028	25.0
635 x 635	0.0009	0.022	0.0006	0.015	14.5
