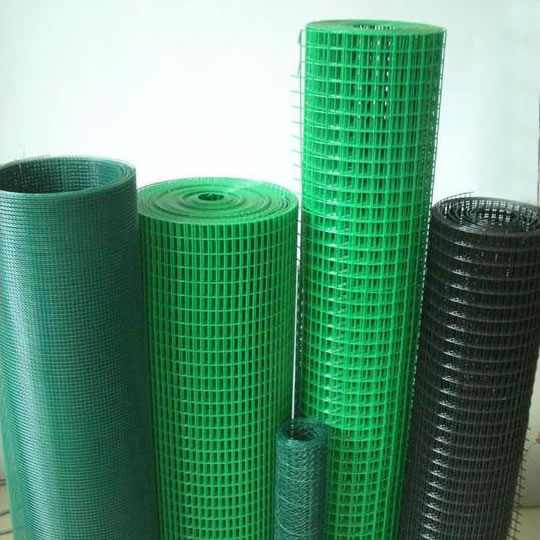

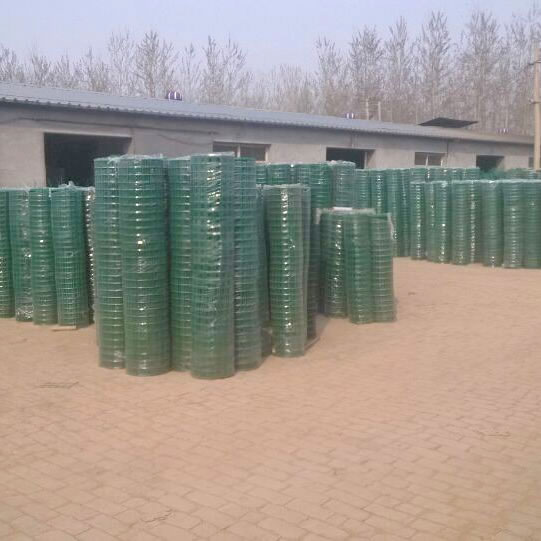

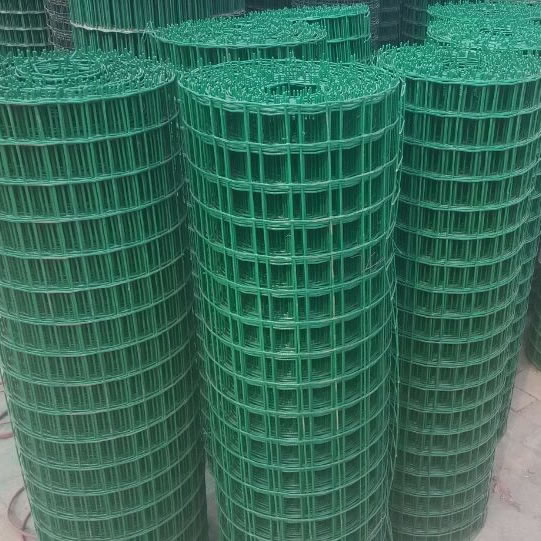

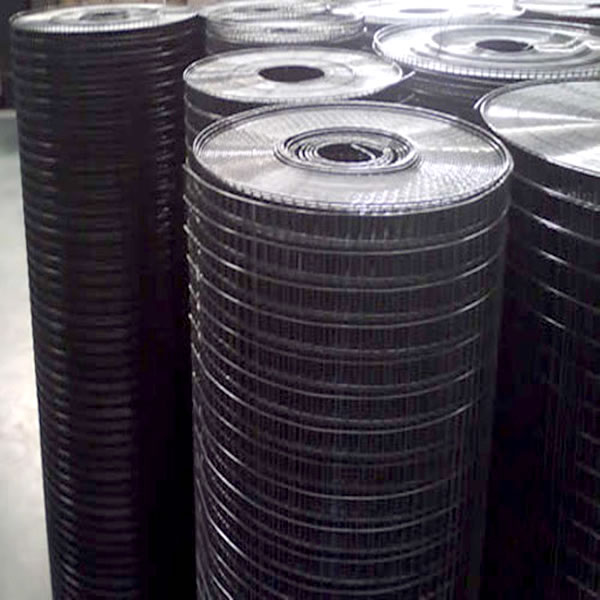

PVC Coated Welded Mesh
|
||||||||||
  |
PVC coated welded wire mesh is made of quality welded low carbon steel wire mesh galvanized before,then coated with PVC powder or PE powder. The coated layer is even,strong adhere siveness and bright luster with long live good anti-corrosive property. All kinds of colors can be coated according to customers' special requirements.
Varieties available: Electric galvanized hot-dipped PVC coated.
Width:3', 4', 5', 6', 7'; Packing, other width, length specification can be at buyer's option.
PVC Coated Welded Mesh: | ||
Opening | Wire Diameter<BWG> | |
In inch | In metric unit(mm) | |
1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21 |
3/4" x 3/4" | 19mm x 19mm | 16,17,18,19,20,21 |
1" x 1" | 25.4mm x 25.4mm | 15,16,17,18,19,20 |
| Technical Note: 1. Standard roll length: 30m; width: 0.5m to 1.2m. 2. Special sizes available at request. 3. Packing: in waterproof paper in rolls. Custom packing available at request. | ||
