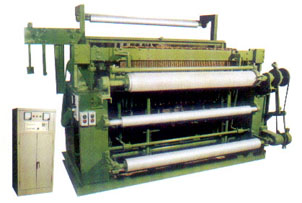

AHD4T Electric Welding Net Machine
|
| |
 |
| |
| Size of mesh (mm) |
6.35-12.7 (1/4"-1/2") |
| Width (mm) |
914.4-1219.2(12"-48") |
| Diameter of wire (mm) |
dia.0.45-dia.1.07 (BWG25-BWG19) |
| Biggest rolled net size (m) |
120m (400') |
| Welding speed (mesh/minute) |
75 (radia) |
| Power |
380/220V
50-60HZ
50KWA x 4 |
| Outside size measurement (mm) |
2350 x 1820 x 1700 |
|
| |
|

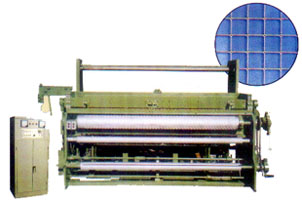

| AHD6T Electric Welding Net Machine 30 |
|
| |
| Peculiarity: Shuttle sending weft wire type, sending quicker, lower noise, more stable, save electricity.Used for welding net of big width. Wire diameter from 0.7mm to 1.07mm; mesh 1/4" to 1/2". |
| |
 |
| |
| Size of mesh (mm) |
6.35-12.7 (1/4"-1/2") |
| Width (mm) |
1219.2-1828.8(48"-60") |
| Diameter of wire (mm) |
dia.0.74-dia.1.07 (BWG22-BWG19) |
| Biggest rolled net size (m) |
120m (400') |
| Welding speed (mesh/minute) |
48 (radia) |
| Power |
380/220V
50-60HZ
50KWA x 6 |
| Outside size measurement (mm) |
3050 x 1900 x 1750 |
|
