PVC Coated Welded Mesh


MOQ: 10,000 PCS
Sample: Workable
Delivery Time: 10 days after deposit
Loading Port: Xingang,China
Payment terms: T/T or LC

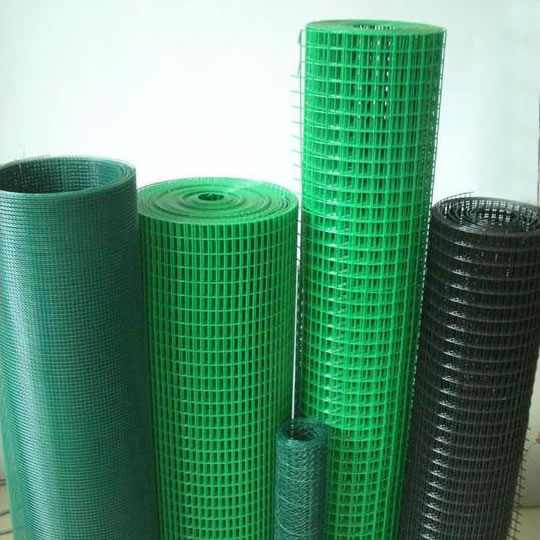

PVC coated welded wire mesh is made of quality welded low carbon steel wire mesh galvanized before,then coated with PVC powder or PE powder. The coated layer is even,strong adhere siveness and bright luster with long live good anti-corrosive property. All kinds of colors can be coated according to customers' special requirements.

Varieties available: Electric galvanized hot-dipped PVC coated.

Width:3', 4', 5', 6', 7'; Packing, other width, length specification can be at buyer's option.

PVC Coated Welded Mesh:
Opening
Wire Diameter<BWG>
In inch
In metric unit(mm)
1/2" x 1/2"
12.7mm x 12.7mm
16,17,18,19,20,21
3/4" x 3/4"
19mm x 19mm
16,17,18,19,20,21
1" x 1"
25.4mm x 25.4mm
15,16,17,18,19,20
Technical Note:
1. Standard roll length: 30m; width: 0.5m to 1.2m.
2. Special sizes available at request.
3. Packing: in waterproof paper in rolls. Custom packing available at request.
